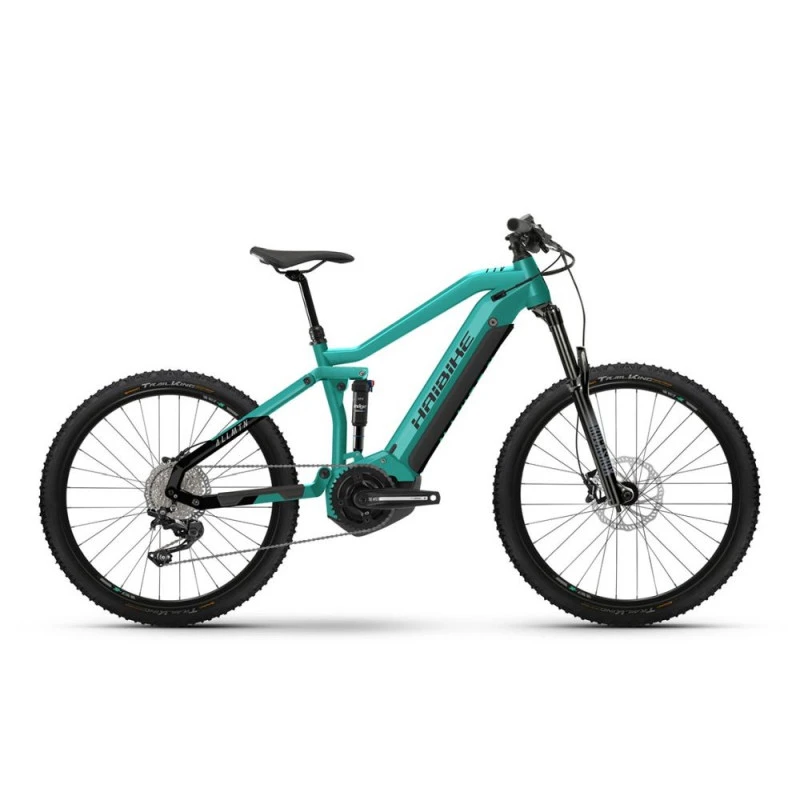

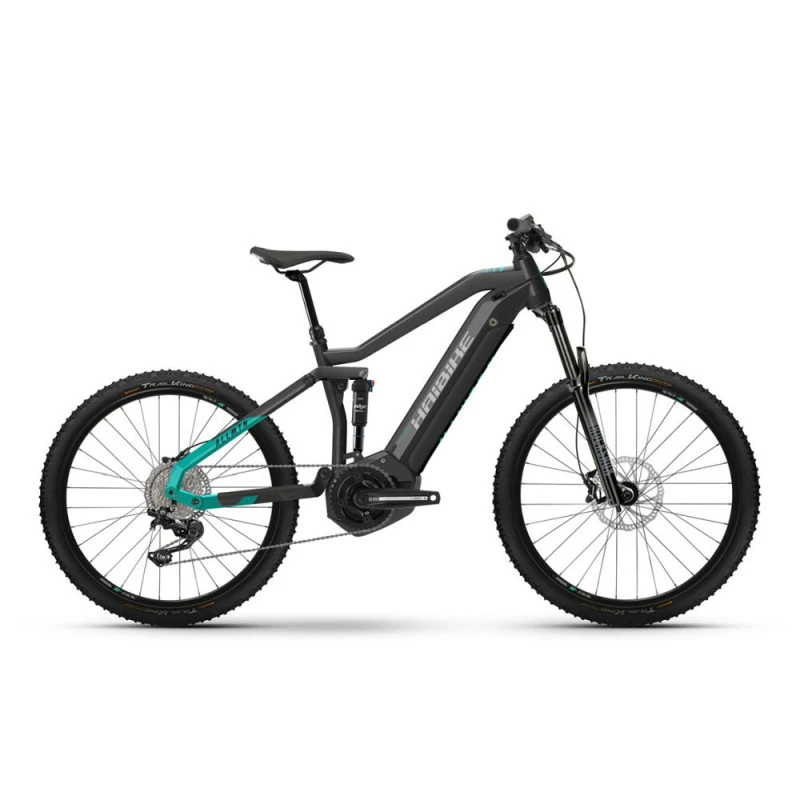

Haibike AllMtn 1

ENGINE

Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h

DISPLAY

Yamaha, Side Switch, 1.7″ LCD, 7 functions

BATTERY

InTube, 630 Wh

FRAME FAMILY

Haibike, AllMtn Yamaha i630, Aluminium

FORK

RockShox, 35 Silver, Air, Travel= 160 mm, Aluschaft 1 1/8 – 1 1/2″ tapered, 15 x 110mm thru-axle Boost

DAMPER

SR Suntour, Edge LO-R8, Air, Trunnion Mount M8x25

CRANK ARM

Haibike Components, The Crank +, Aluminium

BRAKE (FRONT)

Tektro, Orion M745 , 203 mm, 4-piston disc brake

BRAKE (REAR)

Tektro, Orion M745 , 180 mm, 4-piston disc brake

TUBE

Presta valve

RIM

Rodi, Tryp 30, with eyelets, hollow rim, Aluminium

CLAMPING RING

Internal hexagon, 34.9 mm

REAR DERAILLEUR

Shimano, Deore M5100

SHIFT LEVER

Shimano, Deore M5100, Trigger switch, 11 Speed

BOTTOM BRACKET

Integrated in the motor

SPROCKET

Shimano, M5100, 11 – 51 teeth

CHAIN

KMC, X11e

CHAINRING

Steel, 38 teeth

BRAKE LEVER

Tektro, Orion M745, Aluminium

BRAKE DISC (FRONT)

Tektro, TR203

BRAKE DISC (REAR)

 Tektro, TR180

TYRE

Continental, Trail King, 60-622, 29″ x 2.4″

FRONT WHEEL HUB

Haibike Components, TheHub ++, 6-bolt standard

REAR WHEEL HUB

Haibike Components, TheHub ++ Steckachse 12×148, 6-bolt standard

SPOKES

Sapim, Leader, Black

HANDLEBAR

Haibike Components, TheBar +++ Gravity , 780 mm

GRIPS

Haibike, MTB grips

STEM

Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 7.0 °

HEADSET

Feimin, A-Head Tapered, Ball bearing

SADDLE

Selle Royal Vivo 1216HRN

SEAT POST

Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm

PEDALS

Freeridepedal , Aluminium, with Reflector,

PERMITTED TOTAL WEIGHT

120.0 kg

TYRE (REAR)

Continental, Trail King, 65-584, 27.5″ x 2.6″

RIM (REAR)

Rodi, Tryp 35, Aluminium, with eyelets, hollow rim
